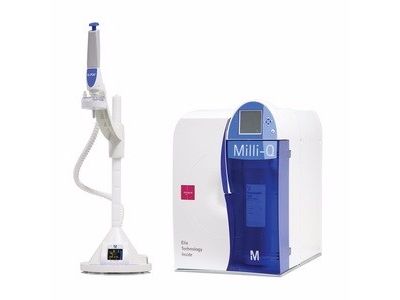

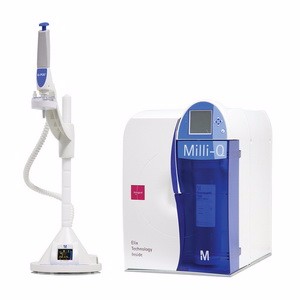

Milli-Q Integral 純水系統(tǒng)

概述 Milli-Q? Integral is a unique combination of optimized water purification and monitoring technologies. It allows, in a single device, both pure (Type 2) and ultrapure (Type 1) water to be produced directly from potable water. This all-in-one concept offers several benefits: Provides users with complete control over all water purification steps and the final water quality. Allows installation of a comprehensive water purification chain in a minimal amount of space. Eliminates the constraints of centralized water stations and their distribution loops (complexity, heavy maintenance, prolonged downtime, contamination).

  • 品牌： Millipore / 密理博
  • 型號： Milli-Q Integral 純水系統(tǒng)
  • 其他型號：

規(guī)格

Water Specifications

Milli-Q? Integral ultrapure water (Type 1)

Resistivity at 25 °C118.2 MΩ?cm
TOC2≤ 5 ppb
Particulates (size > 0.22 μm)3< 1 particulate/mL
Bacteria3,4< 0.01 CFU/mL
Pyrogens (endotoxins)4< 0.001 EU/mL
RNases4< 1 pg/mL
DNases4< 5 pg/mL
Flow RateUp to 2 L/min
1resistivity can also be displayed non-temperature-compensated as required by USP
2in the appropriate test conditions
3with Millipak? final filter
4with Biopak? polisher
These values are typical and may vary depending on the nature and concentration of contaminants in the feed water.

Milli-Q? Integral pure water (Type 2)

Resistivity at 25 °C1Typically 10-15 MΩ?cm
TOC< 30 ppb
Production flow Rate3 L/h (Milli-Q? Integral 3)
5 L/h (Milli-Q? Integral 5)
10 L/h (Milli-Q? Integral 10)
15 L/h (Milli-Q? Integral 15)
From an E-POD? dispenser with final filter, the following water quality specifications are achieved:
Particulates (size > 0.22 μm)2< 1 particulate/mL
Bacteria2,3< 0.1 CFU/mL
Pyrogens (endotoxins)3< 0.001 EU/mL
RNases3< 0.01 ng/mL
DNases3< 4 pg/μL
Flow RateUp to 2 L/min
1Resistivity can also be displayed non-temperature-compensated as required by USP
2with Millipak? final filter
3with Biopak? Polisher

Feed water

Feed water qualityPotable tap water as described in US-EPA, EP and WHO norms
Feed water connection?” Gaz M
Feed water pressure*1 - 6 bar
Feed water temperature5 - 35 °C
* For pressure above 6 bar, a pressure regulator needs to be installed upstream of the system

System Specifications

Production unit

Dimensions (H x W x D)500 x 332 x 484 mm (19.7 x 13.0 x 19.0 in)
Operating weight24 - 28 kg (52.9 - 61.7 lb)
Electric power supply voltage100 - 230 V +/- 10%
Electric power supply frequency50 - 60 Hz +/- 10%
Milli-Q? Integral main unit data connectionEthernet (RJ45)

Q-POD? & E-POD? dispensers

Dimensions (H x D)579 x 230 mm (22.8 x 9.0 in)
Operating weight4.7 kg (12.1 lb)
Dispenser tubing length0.8 m (31.5 in)
Distance from production unit to Q-POD?2.9 m (9.5 ft)
Electric power cable length2.9 m (9.5 ft)
Q-POD? data connectionParallel port (25-pin D-Sub)
